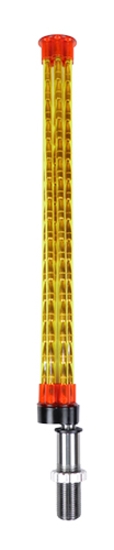

Inline Bullet Feed Kit 22 CAL

Inline Bullet Feed Kit 22 CAL

Availability: In stock
SKU: 92010

Inline Bullet Feed Kit 22 CAL. For use with 22 Hornet to 222 Rem Mag. Bullet diameter range .220 to .225. Includes Feed Die and bullet feed magazine.

All steel construction featuring a ball bearing escapement mechanism. Spring loaded positive ball carrier return assures reliable operation. Jacketed, cast, powder coated and copper plated bullets are reliably fed. Configurable for long and short bullet lengths. Includes support tab for the optional multi tube feed magazine. Works in any press with standard 7/8-14 threads.

Each die is caliber specific so there is nothing to change or adjust.  Easy adjustment, place a case in your press and screw the Inline die in until it drops a bullet plus a half a turn, and that’s it.

Extra gatling style magazines, works great to have another magazine ready to load.

Click here to view parts

Products specifications
Attribute nameAttribute value
Gun TypeRifle
Cartridge22 Hornet, 218 Bee, 221 Fireball, 222 Remington, 223 Remington (5.56MM NATO), 223 Ackley Improved, 25-45 Sharps, 220 Swift, 22 ARC, 22 Creedmoor, 22 Nosler, 22 TCM
