    Inline Die Only 40 CAL

    Inline Die Only 40 CAL
    SKU: 91996
    Manufacturer part number: 91996
    Availability: In stock

    Inline die only 40 CAL. For use with with 40 S&W, bullet diameter .375 to .405.

    All steel construction featuring a ball bearing escapement mechanism. Spring loaded positive ball carrier return assures reliable operation. Jacketed, cast, powder coated and copper plated bullets are reliably fed. Configurable for long and short bullet lengths. Includes support tab for the optional multi tube feed magazine. Works in any press with standard 7/8-14 threads.

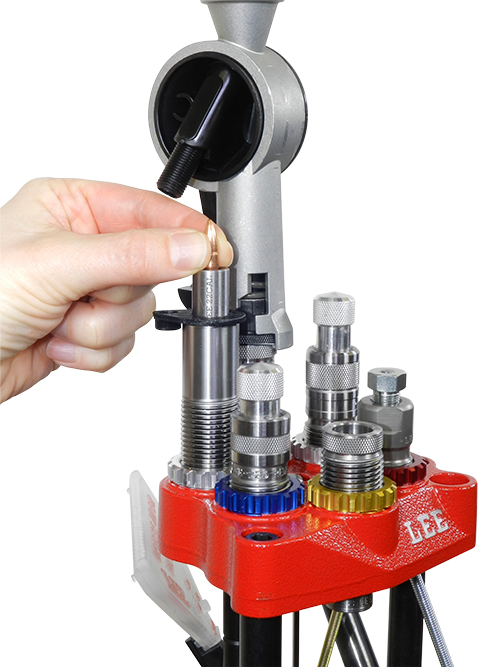

    Each die is caliber specific so there is nothing to change or adjust.  Easy adjustment, place a case in your press and screw the Inline die in until it drops a bullet plus a half a turn, and that’s it.

    Optional gatling style magazine, small and medium hold over 100 bullets!

    Click here to view parts

    Products specifications
    Gun TypeHand Gun
    Cartridge40 Smith & Wesson, 10MM Auto
