Custom Rifle Factory Crimp Die

SKU: 90595

Send to:
Lee Precision, Inc.
4275 County Road U
Hartford, WI 53027

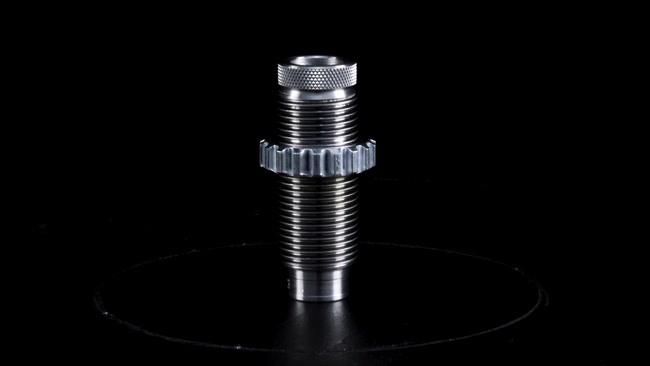

The collet-type Factory crimp die can be made for a wide variety of cartridges. Most cartridges will fit into the 7/8 x 14 thread die body. If your cartridge falls within the following parameters it will fit the standard 7/8 x 14 die:

Bullet diameter .172" - .501" (minimum - maximum)
Body diameter .295" - .562" (minimum - maximum)
Case length 1.250" - 2.850" (minimum - maximum)

We will need:

Dummy cartridge (a projectile seated in an empty fired and sized case). The dummy cartridge is for testing purposes, so make sure it is within normal dimensional tolerances. *Note to International Customers:  Due to newly enforced shipping regulations as of 2/6/18, we will NOT be able to return your dummy cartridge to you.*

Please send your dummy cartridge, along with your invoice/order ID to:

Lee Precision, Inc.
4275 Highway "U"
Hartford, WI 53027

Current lead time is 6 weeks.

Unable to make the following cartridges:

  • 11mm French (too short)
  • 17 Ackley Bee (too small)
  • 17 Mach IV (too short)
  • 19 Badge (too small)
  • 22 Rim Fire
  • 22 LR (too short)
  • 25 ACP
  • 32 NAA (too short)
  • 22 Rem Jet (too short)
  • 32 S&W Short (too short)
  • 38 S&W
  • 38/45
  • 38 Short Colt
  • 38 Long Colt
  • 41 Long Colt
  • 256 Winchester Magnum
  • 310 Cadet (too short)
  • 460 S&W (you can use the # 90865 Carbide Factory Crimp Die for this cartridge to apply a Factory Crimp and post-size part of the case)
  • 475 Linebaugh
  • 500 Linebaugh (too sort for large series die body and too large for standard series die body)
  • 50 AE (case diameter is too large to fit in the 7/8-14 die and too short for large series as a collet type crimp die. It can not be made as a carbide crimp die because the carbide would end up being too thin to have the necessary strength. If you wish to separate the bullet seating and crimping steps then purchasing a separate seating die body is your best option.)
  • 50 GI (too big)
  • 50/110 Win Express (no shell holder available)
  • 7.62 Model 1895 Russian Nagant Revolver
  • 7.62 x 12
  • 7.62x25 (too small)
  • 7.63 Mauser
  • 7.65mm
  • 7.92x33 Kurz (too small)
  • 50/70 (too large)
  • 50/95 (too large)
  • 56/60 Spencer (too large)
  • 500 Cor Bon
  • 500 S&W (use the # 90931 Collet Style Factory Crimp Die)
  • 510 GNR (too short)
  • 8mm Kurz (too small)
  • 8mm Nambu (too small)
  • 9.4 Dutch Revolver (too short)


Dealers/Distributors, receive your pricing when you order 36 pcs. or more
