5.7x28mm FN Dies

Click here to view parts

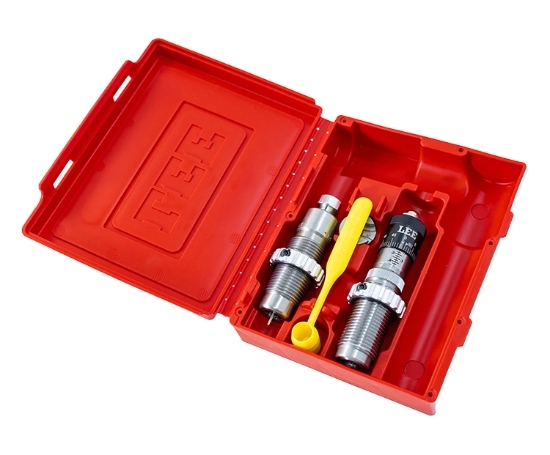

Lee 5.7x28 Steel 2-Die Set. Includes Full Length Sizing Die, Bullet Seating Die, Universal Shell Holder, powder dipper and Instructions/Load data.

If you wish to utilize a Lee Pro Auto-Disk or Auto-Drum Powder Measure with this die set, you will need to purchase the short charging die # 90668.

Lee resizing lubricant is required with this die set.

Winter 2024:

It has come to our attention that 5.7 x 28 brass is now potentially fully annealed from case mouth to rim.  This causes many issues with the reloading process.

Our suggestion is to use LEE Resizing Lubricant and our FN shell holder. The rims are so soft that they cannot be resized with a standard universal shell holder, as the brass rims deform, and are pushed down into the .260" relief hole, that is used for priming.  We have introduced a FN shell holder #92183 for resizing this brass.  The FN shellholder cannot be used to re-prime brass, you will need to use the standard #15 shellholder to do this.  We have also seen that the primers are staked or crimped into position.  This maybe due to the brass being so soft, that it does not have the ability to hold the primer into position, via a slight press fit.

The quick trim die uses a plastic bushing to provide a slight interference fit on the body of the cartridge to hold it stationary while trimming.  This new brass is so soft, the plastic bushing is deforming the brass.  If this happens to you, return your die body to the factory at the address below, and we will ream the bushing out to the largest allowable dimension to prevent damage to these soft cases.

With your return, please fill out the form here.

Our address:
Lee Precision, Inc.
4275 County Road U
Hartford, WI 53027

5.7 x 28 FN Steel Full Length Sizing Die Complete.

Click here to view parts

5.7X28 FN bullet seating die only complete

There are two crimp shoulders in this Bullet Seating Die. The first shoulder applies a slight taper crimp and the second shoulder applies a full roll crimp. The closer the die is adjusted to the shell holder the heavier the crimp will be.

Consider completing the bullet seating die with rifle micrometer adjuster. Provides precision bullet seating depth. Easy to read laser engraved divisions represent .001" of an inch. No clicks, just smooth adjustment.

Click here to view parts

Click here to view parts

5.7 x 28 FN custom quick trim die overrun available for immediate shipment.

Winter 2024:

It has come to our attention that 5.7 x 28 brass is now potentially fully annealed from case mouth to rim.  This causes many issues with the reloading process.

The quick trim die uses a plastic bushing to provide a slight interference fit on the body of the cartridge to hold it stationary while trimming.  This new brass is so soft, the plastic bushing is deforming the brass.  If this happens to you, return your die body to the factory at the address below, and we will ream the bushing out to the largest allowable dimension to prevent damage to these soft cases.

With your return, please fill out the form here.

Our address:
Lee Precision, Inc.
4275 County Road U
Hartford, WI 53027
